CONSORT
|
Power
Supply
Systems
|
|
The
most
robust,
long
lasting
electrophoresis
power
supplies
in
the
market
-
A
new
graphical
display
provides
more
useful
information.
Both
voltage
and
current
measurement
systems
have
improved
to
a
higher
resolution.
-
Though
the
EVxxxx
has
some
advanced
features
such
as
method
programming,
USB
computer
control,
automatic
recovery,
care
has
been
taken
to
design
for
ease
of
use.
Simply
set
your
power
supply
to
the
desired
parameters
and
run.
-
The
new
design
makes
the
power
supply
easier
to
repair
and
combined
with
firmware
upgrade
capability
the
EV
series
will
always
be
high-end.
-
The
EV
series
continue
their
program
after
a
power
failure.
Thanks
to
continuous
event-based
logging
combined
with
a
real
time
clock
it’s
possible
to
get
an
overview
of
previous
runs,
including
possible
down-times
in
case
of
mains
power
failures.
|
|
|
|
Features
|
-
Power
Supply
Catalogue
-
Power
Supply
Manuals
|
|
- On
screen
help
With
an
on
screen
help
system
in
4
languages
the
user
is
assisted
to
set
up
the
power
supply
parameters.
In
case
of
an
error
a
text
is
displayed
to
help
finding
the
problem
rapidly.
- Firmware
updates
The
power
supply’s
software
can
easily
be
upgraded
to
the
latest
version
via
the
USB
interface.
When
our
research
results
in
a
new
functionality,
it
will
be
made
available
to
the
complete
series.
Feature
requests
can
also
be
implemented
via
the
firmware
system.
- Real
Time
Clock
Date
and
time
are
kept
in
a
battery
backup
system.
This
system
is
also
used
for
logging unexpected
mains
power
failures
during
an
electrophoresis
run. Various
running
methods:
- Simple
programming.
The
manual
mode
allows
to
set
voltage,
current,
power
and
time
for
a
routine electrophoresis
run.
Parameters
can
be
changed
temporarily
without
interrupting
the
run.
- Method
programming.
Up
to
9
different
programs,
each
with
9
steps,
of
frequently
used
parameters
can
be
stored
in
the
non-volatile
memory
for
future
recall.
Reads
voltage
in
1
V
steps,
current
in
1
mA
steps
and
power
in
1
W
steps.
Each
step
is
able
to
recall
a
next
one,
providing
a
flexible
multiple
step
function
for
special
techniques.
Parameters
of
the
running
step
can
be
changed
temporarily
without
interrupting
the
run.
- Voltage
ramp.
The
method
mode
also
allows
to
program
a
linear
voltage
gradient
for
any
step
provided
the
limiting
current
or
power
is
not
attained.
- Timer.
Timer
or
volt-hour
controlled
operation
is
a
useful
standard
feature
on
all
models.
The
power
supply
will
automatically
terminate
the
run
and
sound an
alarm
when
the
count
down
of
the
selected
value
is
achieved.
- Automatic
cross-over
Each
model
has
constant
voltage,
constant
current,
constant
power
capabilities
with
automatic
cross-over
and
shows
which
parameter is
kept
constant.
- Automatic
recovery
after
power
failure
After
a
mains
power
failure
the
instrument
will
automatically
continue
the
run
for
the
remaining
time.
- Password
protection
Prevents
any
unauthorised
modification
of
the
instrument’s
settings
allowing
the
user
only
to
modify
the
parameters.
- Display
The
graphical
LCD
screen
provides
step
by
step
instructions
in
the
language
of
your
choice
(English,
Dutch,
French,
German).
- Data-logging
Data
logging
of
300.000
events
(value
stored
when
change
occurs)
which
corresponds
to
about
1000
hours
of
runs
are
automatically
stored.
Data
includes
data/time,
voltage,
current,
power
and
date/time
of
following
events:
start,
stop,
pause,
program
number,
step,
changes,
mains
failure
and
auto
restart.
The
logged
data
is
downloadable
via
data
transfer.
- Data
Transfer
Free
data
acquisition
software
for
PC
can
be
downloaded
from
our
website.
It
allows
to
visualize
and
examine
the
stored
run
details
via
USB.
- Remote
control
All
power
supplies
can
be
controlled
by
a
computer
using
special
commands.
These
commands
can
be
found
in
the
support
section
of
our
website.
- Safety
features
With
high
voltage
power
supplies
human
safety
is
very
important.
The
power
supply
has
various
protection
features:
Ground
leakage
detection.
The
user
is
protected
from
potential
shock
hazard
since
the
AC
line
is
automatically
disconnected
from
the
high
voltage
transformer
when
a
ground
leakage
path
is
detected.
Overload
protection.
The
instrument
is
fully
protected
against
any
overload
condition
including
accidental
short
circuit
of
the
output.
Smooth
voltage
rise.
The
high
voltage
cannot
suddenly
appear
at
the
outputs.
It
will
always
increase
smoothly
up
to
one
of
the
pre-set
limits. No
load
detection.
Prevents
errors
such
as
a
bad
or
a
dangling
connection. Isolated
communication.
Optically
isolated
USB
input/output
connection
to
prevent
any
high
voltage
on
the
communication
lines.
- Warranty
3
year
warranty
on
factory
faults.
|
|
|
|
|
|
Application
guide
|
|
|

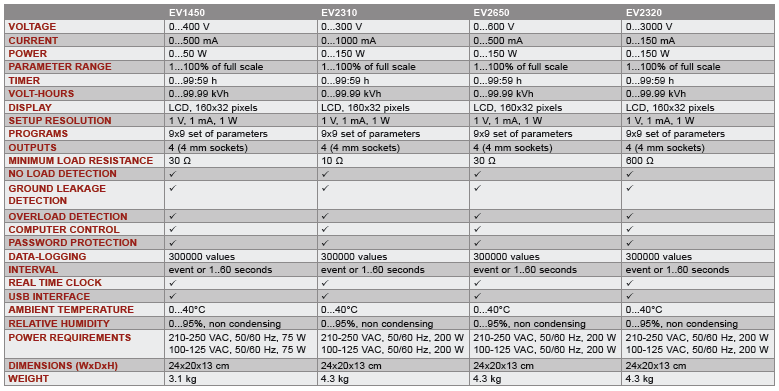

model |
specifications |
EV1450:
|
0...400 V, 0...500 mA, 0...50 W
|
EV2310:
|
0...300 V,
0...1000 mA, 0...150 W
|
EV2650:
|
0...600 V,
0...500 mA, 0...150 W
|
EV2320:
|
0...3000 V,
0...150 mA, 0...150 W
|
EV3020:
|
0...300 V,
0...2000 mA, 0...300 W
|
EV3610:
|
0...600 V,
0...1000 mA, 0...300 W
|
EV3150:
|
0...1200 V,
0...500 mA, 0...300 W
|
EV3330:
|
0...3000 V,
0...300 mA, 0...300 W
|
EV3620:
|
0...6000 V,
0...150 mA, 0...300 W
|
|
|
|
|
|
|
|
