      CONSORT

  ElectroChemistry  Systems

 A high resolution graphic screen with white backlight and Robust dust and splash-proof cabinet.

 pH, mV, conductivity, ion, salinity, resistivity, TDS, dissolved oxygen,temperature, air pressure, rH2.

 Free data acquisition software enables to view, store and edit the measurements in your computer.

 Password protection prevents any unauthorised access to the instrument.

 Storage memory for up to 12000 values + date and time.

 Three yearwarranty / All necessary GLP-procedures are on board.



    Models

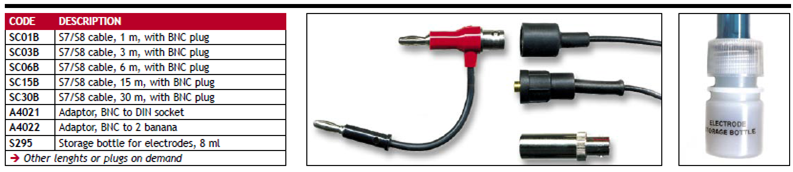

Electrode cables and accessories





AP414 Thermal printer



- Serial (RS232) and parallel (Centronix) input.
- Thermal dot matrix 9x320 dots.
- Prints 40 columns (normal) or 80 columns (condensed).
- Paper width: 112 mm.
- Roll length: ±28 m.
- For direct connection to all meters with a digital out-put.





 SH300 Electrode holder

GOOD MEASUREMENT PRACTICES!

 Model SH300 holds up to three standard electrodes.

 Its heavy base and very stable flexible arm allow the electrodes to move sideways or

 up and down while keeping them at a constant vertical angle.











 Buffer Solutions & memabranes    - All solutions are offered with a certificate in sealed bottles.

PH Solutions    :  pH buffers are colour coded to reduce errors and they are certified to 0.02 pH.

Code

Description

vol.

B002

Coloured buffer 2 pH

50 ml

B004

Coloured buffer 4 pH

50 ml

B007

Coloured buffer 7 pH

50 ml

B010

Coloured buffer 10 pH

50 ml

B012

Coloured buffer 12 pH

50 ml

B502

Coloured buffer 2 pH

500 ml

Code

Description

vol.

B504

Coloured buffer 4 pH

500 ml

B507

Coloured buffer 7 pH

500 ml

B510

Coloured buffer 10 pH

500 ml

B512

Coloured buffer 12 pH

500 ml

B520

Electrolyte, 3M KCl

500 ml

B530

Electrode cleaning solution

500 ml

ORP Solutions   : Redox standards are certified to 1 mV at 25°C.

Code

Description

vol.

B071

Redox standard solution 124 mV

50 ml

B072

Redox standard solution 358 mV

50 ml

B571

Redox standard solution 124 mV

500 ml

B572

Redox standard solution 358 mV

500 ml

B520

Electrolyte, 3M KCl

500 ml

B530

Electrode cleaning solution

500 ml

CONDUCTIVITY Solutions   : Conductivity standards are certified to 0.5 %.

Code

Description

vol.

B060

Calibration solution 0.01 M KCl (1413 μS/cm at 25°C)

50 ml

B061

Calibration solution 0.1 M KCl (12.88 mS/cm at 25°C)

50 ml

B062

Calibration solution 1 M KCl (111.8 mS/cm at 25°C)

50 ml

B066

Calibration solution 200 mS/cm (at 25°C)

50 ml

B560

Calibration solution 0.01 M KCl (1413 μS/cm at 25°C)

500 ml

B561

Calibration solution 0.1 M KCl (12.88 mS/cm at 25°C)

500 ml

B562

Calibration solution 1 M KCl (111.8 mS/cm at 25°C)

500 ml

B566

Calibration solution 200 mS/cm (at 25°C)

500 ml

ISE Solutions

Code

Description

vol.

ISM50

Set of spare membranes for ISE50B

10 pcs

ISM51

Replacement membrane kit for ISE51B

3 pcs

ISM52

Replacement membrane kit for ISE52B

3 pcs

ISM60

Replacement membrane kit for ISE60B

3 pcs

ISM61

Replacement membrane kit for ISE61B

3 pcs

ISM62

Replacement membrane kit for ISE62B

3 pcs

ISM63

Replacement membrane kit for ISE63B

3 pcs

ISM64

Replacement membrane kit for ISE64B

3 pcs

ISM65

Replacement membrane kit for ISE65B

3 pcs

ISM66

Replacement membrane kit for ISE665

3 pcs

ISM67

Replacement membrane kit for ISE67B

3 pcs

ISM68

Replacement membrane kit for ISE68B

3 pcs

Code

Description

vol.

ISM69

Replacement membrane kit for ISE69B

3 pcs

ISM70

Replacement membrane kit for ISE70B

3 pcs

ISM71

Replacement membrane kit for ISE71B

3 pcs

ISM72

Replacement membrane kit for ISE72B

3 pcs

ISM73

Replacement membrane kit for ISE73B

3 pcs

ISM74

Replacement membrane kit for ISE74B

3 pcs

ISM76

Replacement membrane kit for ISE76B

3 pcs

ISM77

Replacement membrane kit for ISE77B

3 pcs

ISF50

Membrane filling solution for ISE50B

125 ml

ISF51

Membrane filling solution for ISE51B

125 ml

ISF52

Membrane filling solution for ISE52B

125 ml
